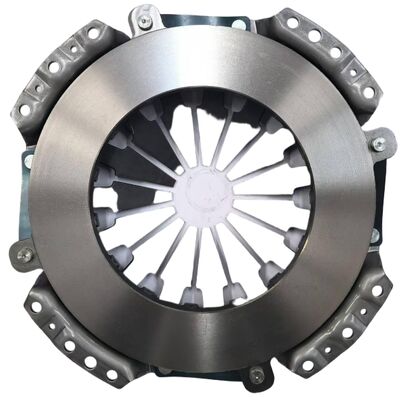

Clutch Pressure Plate MFC540 MFC-540 ME500507 For Mitsubishi Clutch Kits

 Clutch Pressure Plate MFC540 MFC-540 ME500507 For Mitsubishi Clutch Kits

The key parameters of the MFC540 clutch pressure plate are as follows:
Size specification: Outer diameter 275mm, inner diameter 175mm, hole distribution circular diameter 291.5mm
Compatible vehicle models: Mainly compatible with Mitsubishi series vehicles, corresponding original part numbers include ME500169, ME500507, ME500508, ME500615, etc.
Matching brand: for Japanese EXEDY (Daikin) is the mainstream original factory brand for this model. There are also domestic manufacturers such as Huachi Jiachang that produce replacement parts of the same specification.
 Performance and structural features
Friction performance: Uses a mixture of asbestos/copper wire friction plates, with a friction coefficient stable at around 1, free travel is 8mm, and the rated torque meets the requirements of heavy-duty vehicle operation conditions
Structural design: It belongs to an operating-type friction clutch. The clamping force is provided by a diaphragm spring to ensure smooth engagement and complete disengagement
Service life: Under normal operating conditions, when the wear of the friction plate reaches 0.3mm or there is warping deformation (if the flatness deviation exceeds the limit), it needs to be replaced

Detail Information
